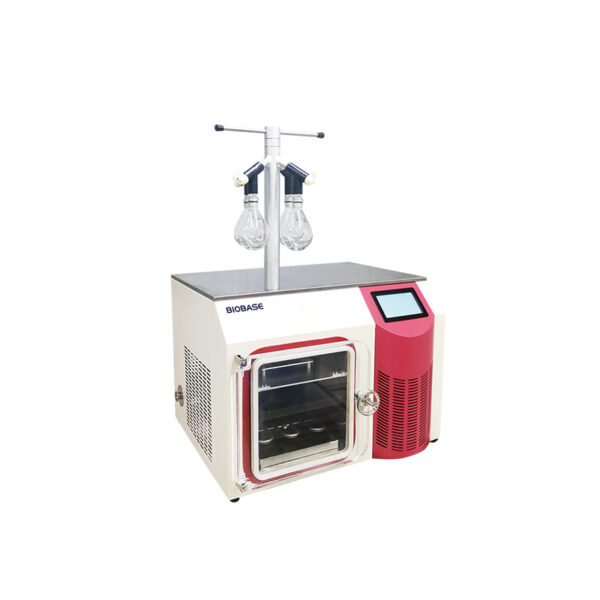

Tabletop Pilot Freeze Dryer BK-FD10ES BK-FD10EP BK-FD10ET BK-FD10EPT

Technical Parameters:

Model		BK-FD10ES	BK-FD10EP	BK-FD10ET	BK-FD10EPT
Type		Standard chamber	4 port manifold	Stoppering chamber	Stopping chamber with 4 port manifold
Cold Trap Temp.		-88℃
Shelf Temp.		-60~+70℃
Temp. Uniformity		±1℃
Vacuum Degree		≤0.1Pa
Cold Trap Volume		11L
Freezer Drying Area		0.1m2
Condensing Capacity		3kg/h
Qty. Of Shelf		1
Drying Chamber Size		40L
Material Loading Capacity		3000ml
Total Qty. of Vial	Φ22mm	216
	Φ16mm	400
	Φ12mm	726
Manifold		/	4 pieces	/	4 pieces
USB Interface		Yes
Drying Chamber (Standard)		Transparent Acrylic
Vacuum Pump		Standard
Control System		Microprocessor, touch screen
Power Supply		220/110V, 50/60Hz
Power		2.3kW
Cold Trap Size(Φ*Hmm)		215*190mm
Shelf Size(WDH)		270400150mm		270400120mm
External Size(WDH)		820695600/995mm		820695875/1075mm
Host Package Size(WDH)		940840990mm
Vacuum Pump Package Size(WDH)		600230300mm
Gross Weight		180kg	210kg	210kg	220kg
