DOP HEPA is including the plenum chamber and HEPA filter,diffuser.It can be used as the terminal HEPA filteration setting’sinstallation with characteristics of less investment and simple construction in the roof of transformation and foundation of new clean room.

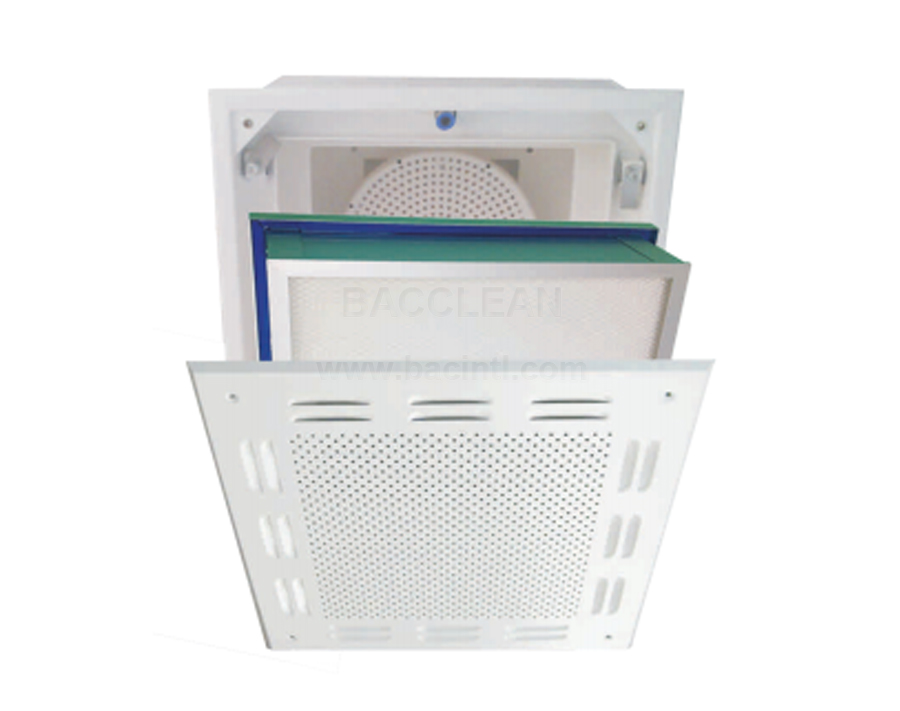

  Dop HEPA unit adopts the sump-style HPEA filter with better sealing.It can have the leak test to check the filter’s gasket,frame,and  the sealing with DOP test port and the injection part after the installation of HEPA filter.It is more convenient to the regularly leak tesrs to HEPA filter of the aseptic workshop.

 It applies to different classes and structure uneven clean rooms.

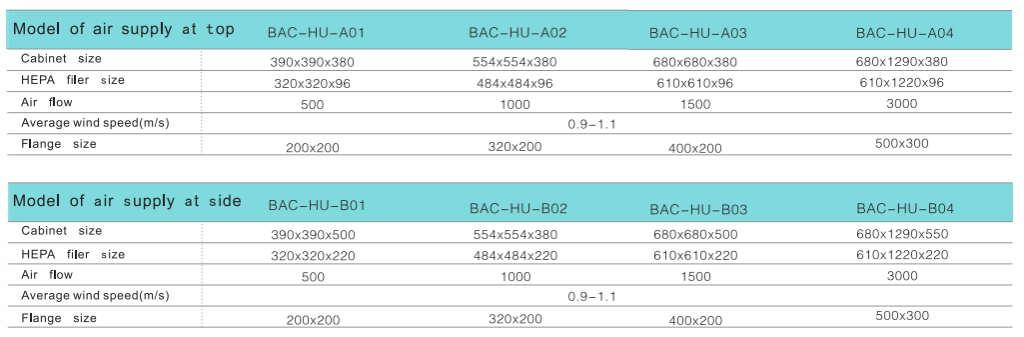

Specifications

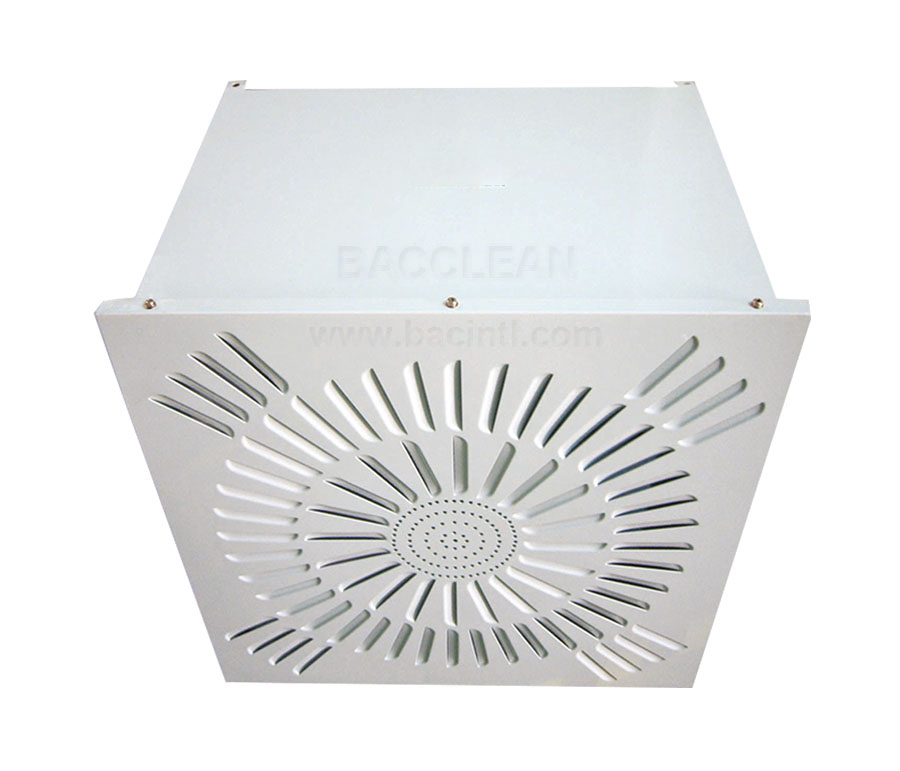

The whole air supply surface is replaced by a positive and negative hole dispersing port, and the negative air flow is blown to the clean room in a circular table manner, and the energy is restricted to wind away indoor dust, and the air flow is averaged, and the premise is higher. The result is the cleanliness of the clean room; the high-efficiency air supply port is used as a terminal for efficient filtration and installation, and can be directly placed in the ceiling of the clean room, with high efficiency, low resistance, light weight and low investment. , construction is simple and equal strength.

The high-efficiency air supply port is the most imaginary terminal filter installation for purifying the air-conditioning system. However, most of the current high-efficiency air supply ports in the market are single, the air is uneven, the center is a circular hole, and the surrounding is scattered, due to the circular hole and the air flow. The angle is formed, and the eddy current is easily formed. The dust is taken away by the airflow of the clean room, which seriously affects the cleanliness of the clean room and greatly improves the operating cost of the clean room.

Efficient air supply is the best end of the clean room. It is commonly used in some areas where high cleanliness is required, such as: implementation room, biopharmaceutical, hospital, LED optoelectronics, semiconductor, circuit board, microelectronics, hard disk manufacturing, Food processing, fine machinery, etc. The air conditioning end of the dust-free purification workshop.

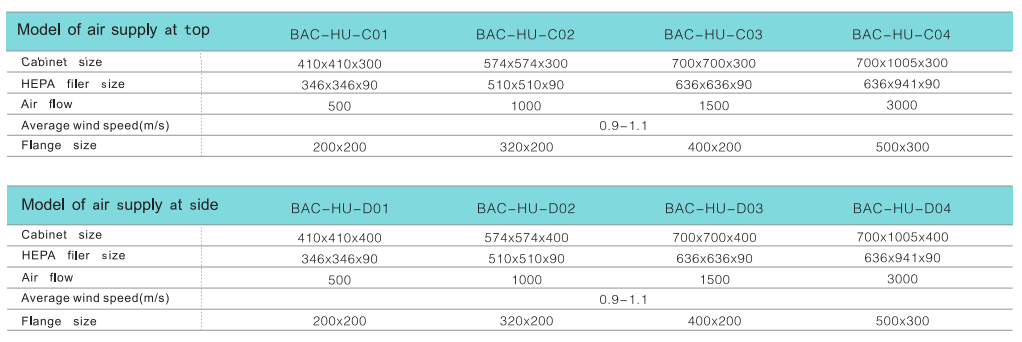

Specifications

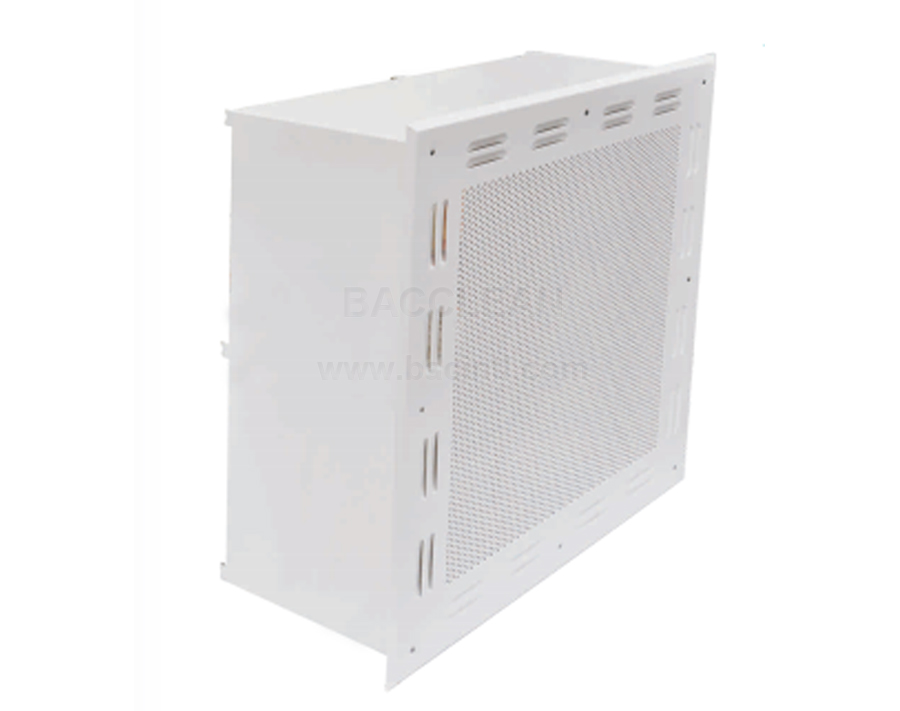

Hepa unit are ideal terminal filtration devices for thousands, tens of thousands, and 100,000 levels of purified air conditioning systems, which can be widely used in the purification air conditioning systems of the medical, health, electronics, and chemical industries. Hepa unit is used as a terminal filter for the reconstruction and construction of a 1000-3 00000 grade cleaning room, and is a key equipment to meet the purification requirements. High efficiency air outlet includes static pressure box, discharge plate, high efficiency filter, the interface with the air pipe can be a top or side connection.

HEPA unit has good air flow structure and can make the whole clean area purified and ensure the purifying effect. It is the final filtration for the clean room. With less investment, and simple construction

Specifications
