Knock-down Type Pleated Filter is suitable for the air conditioning system in the early effect of filtering, it is mainly used for filtering dust particles under five microns, mother early frame effectively filter box frame materials mainly include the aluminum frame, galvanized sheet, stainless steel frame, filtering material is non-woven fabrics, nylon mesh, activated carbon, aluminum, metal mesh, etc., have good and cheap, light quality, versatility and compact structure.

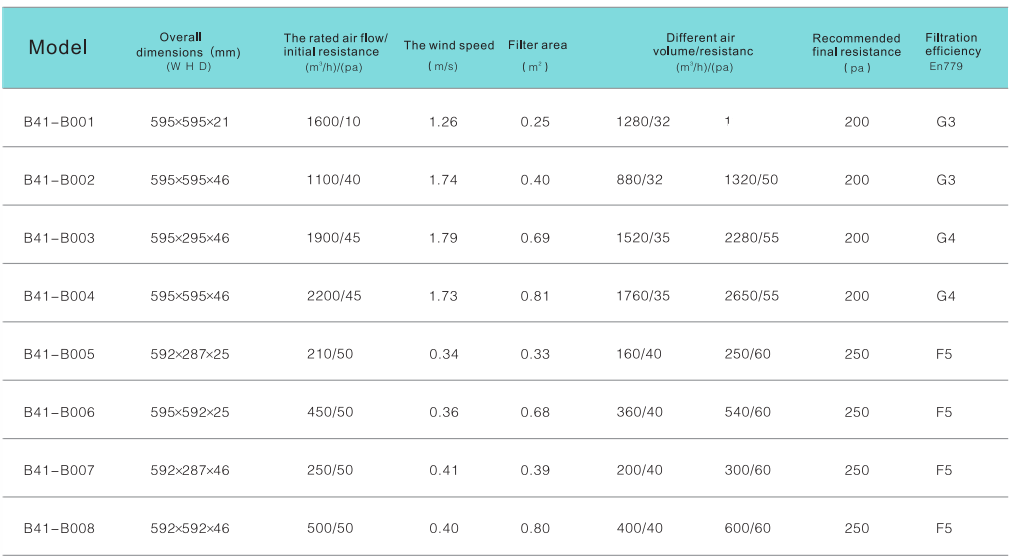

Specifications

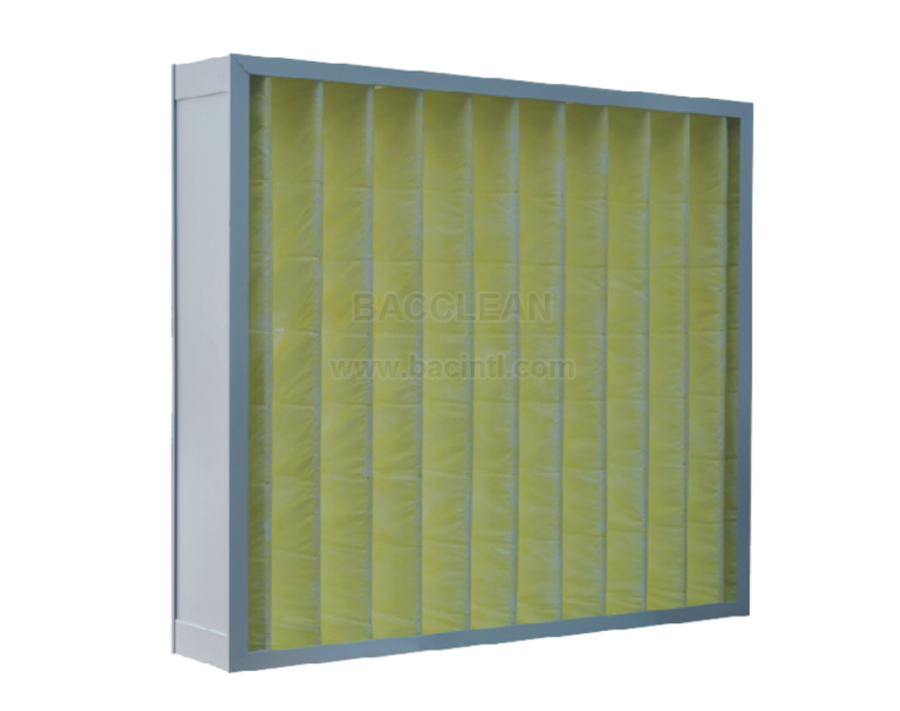

 Box Type Filter description

1). Structure (frame: plastic frame or galvanized or aluminum frame, sealant: AB glue, spacers: hot melt adhesive, filter media: glass fiber filter paper).

Box-type high-efficiency filter is made of ultra-fine glass fiber filter material, hot melt adhesive as a separator, and the plastic frame or galvanized plate frame or aluminum frame assembly.

2). Features: large air volume, low resistance, large capacity dust.

3). Uses: Widely used in optical electronics, LCD liquid crystal manufacturing, bio-medicine, precision instrumentation film and fiber optic equipment, PCB printing and other industries dust-free purification

Air conditioning at the end of the workshop is filtered.

4). Box type efficient: four squares and eight sides and five squares and ten sides.

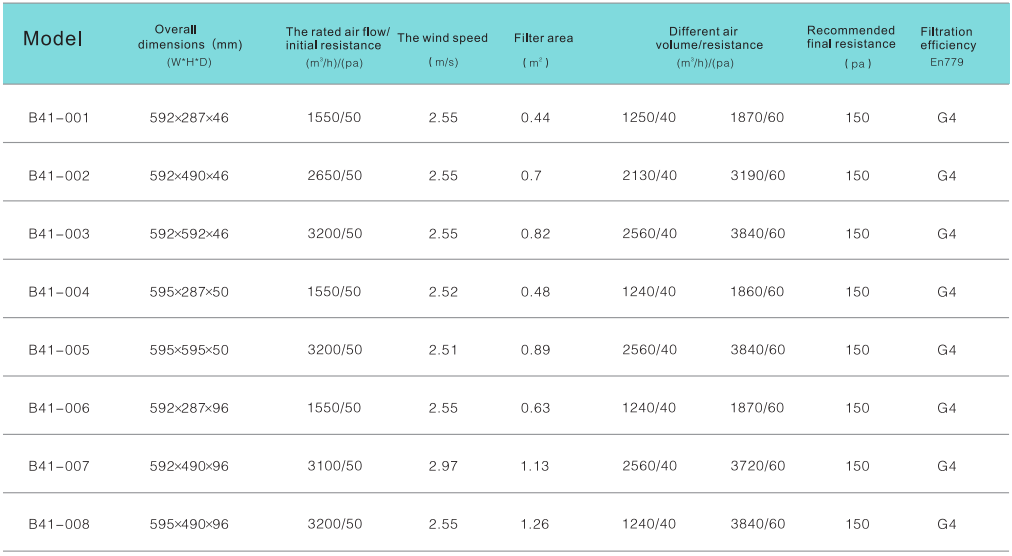

Specifications

Pleated panel air filters are designed for use in air filtration systems and equipment, as stand alone basic efficiency products or as pre-filters to higher efficiency bag, rigid box or cell type filter.

Media bonded to expanded metal support grid create one of the most rigid filters of its type in the industry.

The media pack, comprised of 100% polypropylene fibers, is bonded to the inside perimeter of the enclosure frame by a moisture resistant adhesive,providing a continuous and positives.

Specifications

USES:

1. Can be used as a primary filter for all intake and exhaust devices.

2. It can be used as filter element for special dust removal device and debris suction device.

3. Primary or intermediate filtration of air conditioning filtration system.

4. Clean room air inlet, return air filtration.

Clean the filter material

High dust collecting rate and long service life

Strong fire resistance, low initial resistance

Filtration level: G3 G4 F5(EN779)

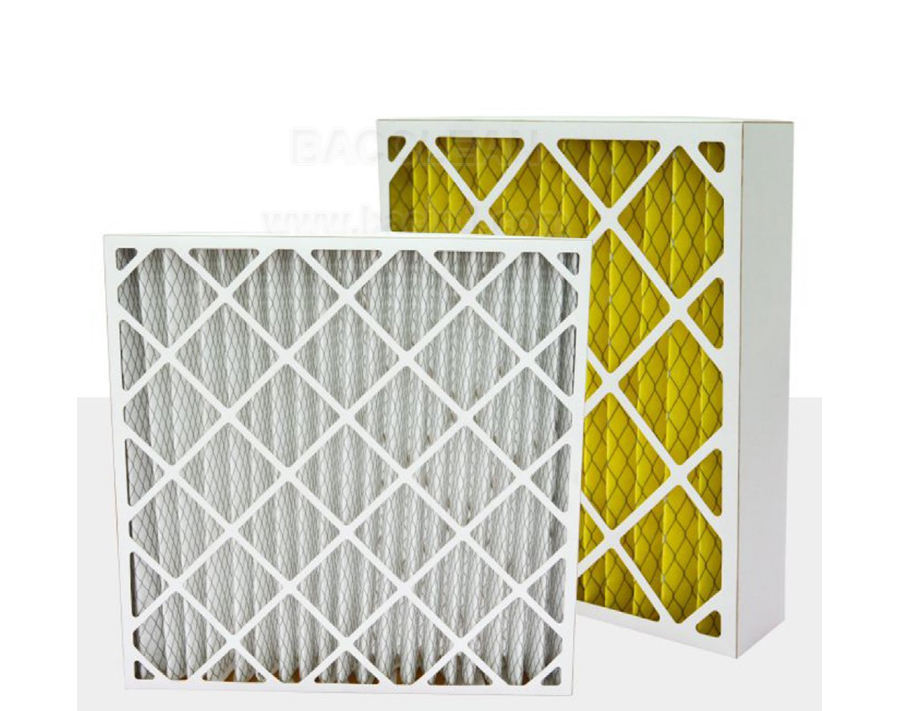

Lightweight structure, easy to install, paper frame type cleaning filter

Designed specifically for use in industrial and commercial heating, ventilation and air conditioning systems as well as central ventilation and air conditioning systems for clean rooms and cleanrooms

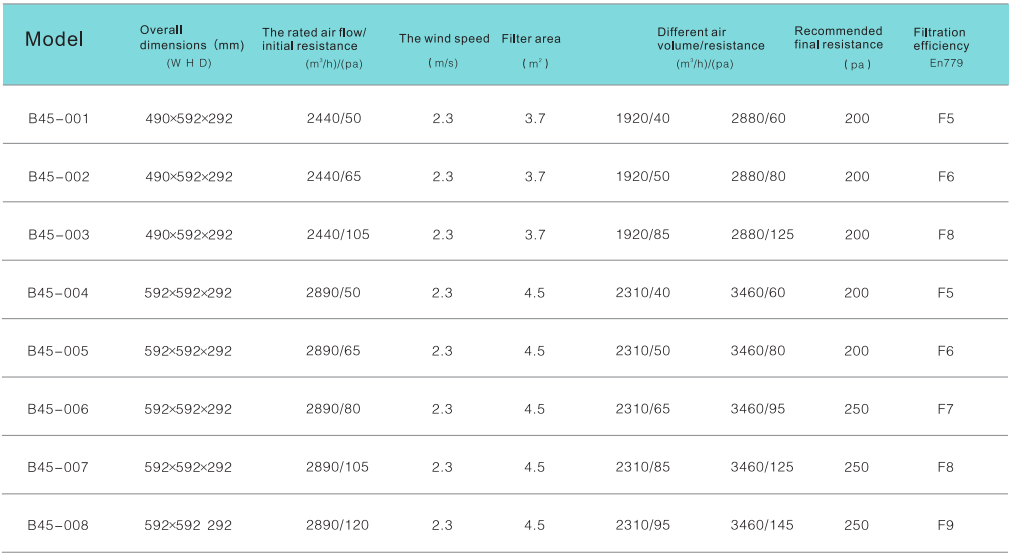

Specifications
