Static Pass Box – Singapore Air Filtration Technology

Electric transfer pass box

root — Tue, 30 Jul 2019 00:39:03 +0000

Electric transfer pass box

The pass thru box is a critical part of the product transfers which occur in every cleanroom. Although simple in design, the
use of a pass box is essential to the maintenance of the high level of cleanliness within the cleanroom. The pass box significantly
limits the amount of outside air exposed to the clean zone. With the use of either a mechanical or electrical interlock system,
the cleanroom is protected from the cross-contamination which would occur if both doors were to open simultaneously.

The pass box is a kind of auxiliary equipment for clean room. It’s used to transfer goods between areas of different clean levels of clean room. It can reduce the times of opening door, prevent the air convection between different areas and minimize the pollution extent.

The pass box is made of stainless steel and is smooth and clean. The two doors are interlocked to effectively prevent cross-contamination. Electronic or mechanical interlocking devices are provided and ultraviolet germicidal lamps are provided.

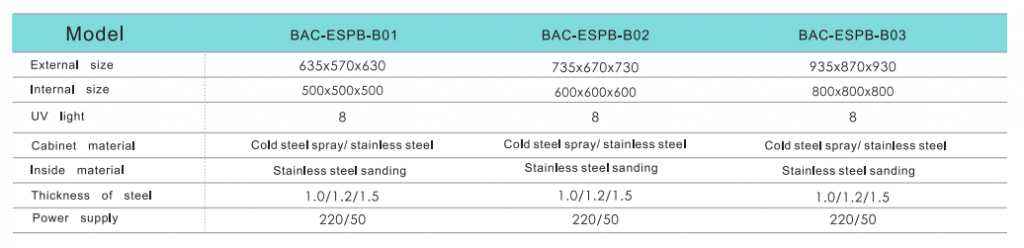

Specifications

Embedded Pass Box

root — Mon, 29 Jul 2019 11:38:47 +0000

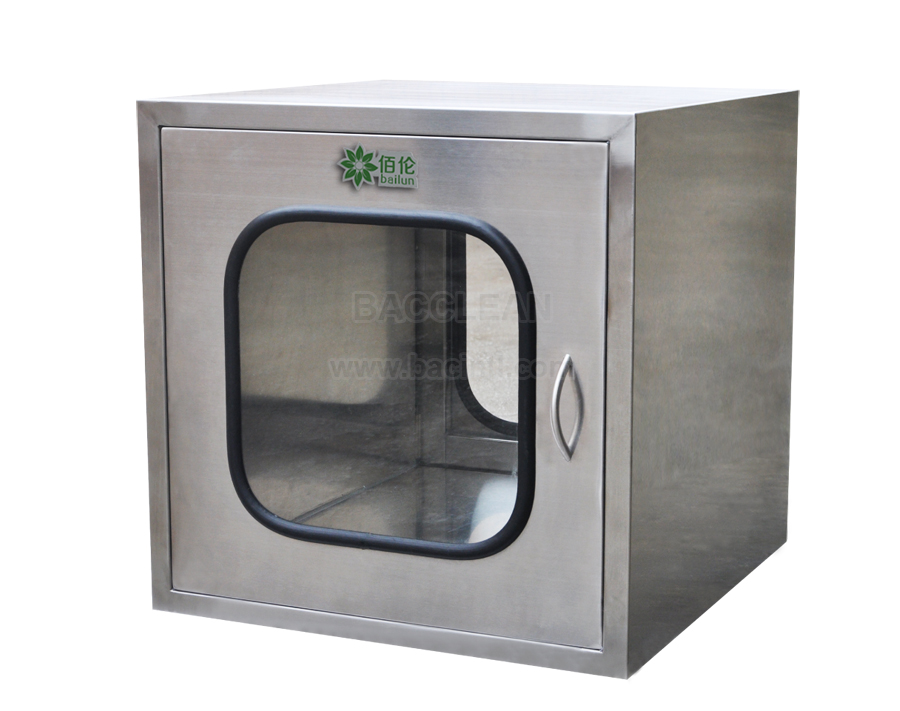

Embedded Pass Box

Embedded pass box is a kind of assistant equipment for clean room.It is mainly used to pass the small articles between clean room and unclean room or two clean rooms.Because of interlocking system,it can reduce the cross pollution.

It’s adopted the sand light stainless steel inside,witch is flat,neat,wearable.The surface material of pass box is cold rolled steel or stainless steel.Doors in two sides with machinery or electronic interlock device make two doors can’t be in the open state at the same time.Pass box with special sealing strips to guarantee the airproof.

It’s widely used in the clean environment,such as:micro-electronics,laboratory,national defense,precise instrument,biopharming,opto-electronics,aseptic packaging,etc.

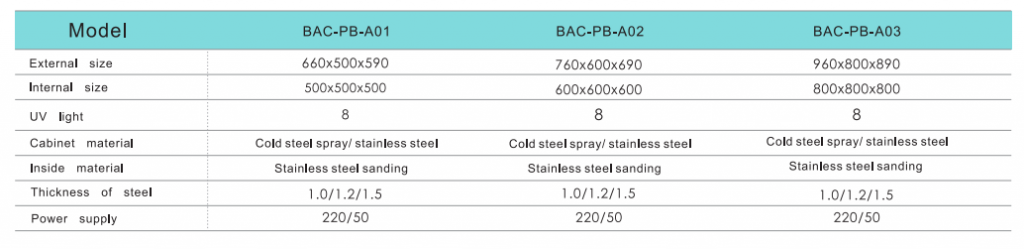

Specifications

General Pass Box

root — Mon, 29 Jul 2019 11:36:48 +0000

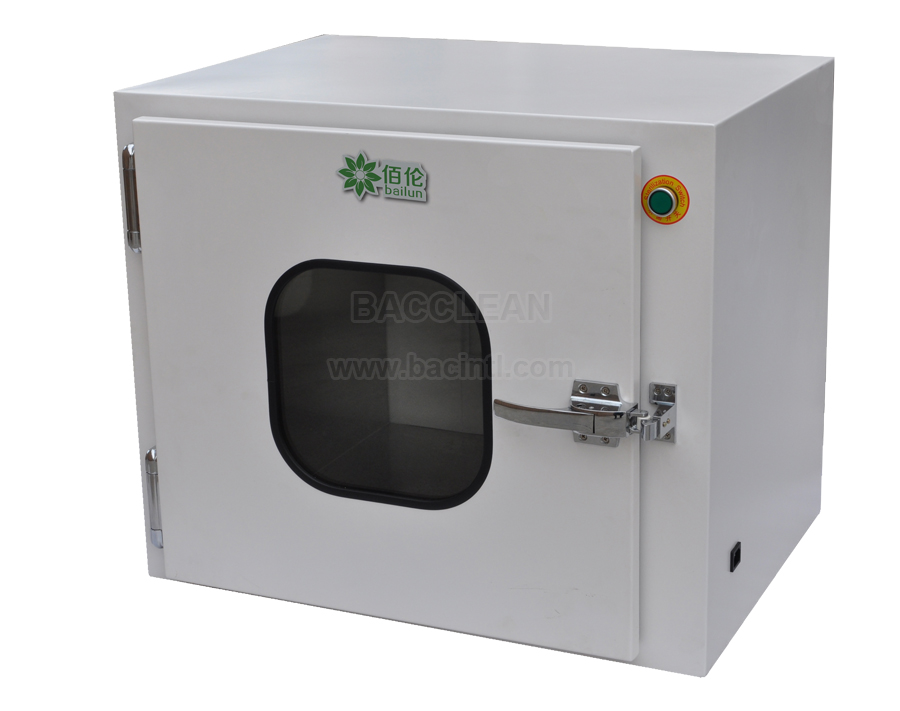

General Pass Box

Pass box is a kind of assistant equipment for clean room.It is mainly used to pass the small articles between clean room and unclean room or two clean rooms.Because of interlocking system,it can reduce the cross pollution.

It has the fuction of air valve to prevent high pressure to leak in the clean room.It can reduce the time when operating personnel walk to prevent bring dust in and keep the the stability of the clean room.
