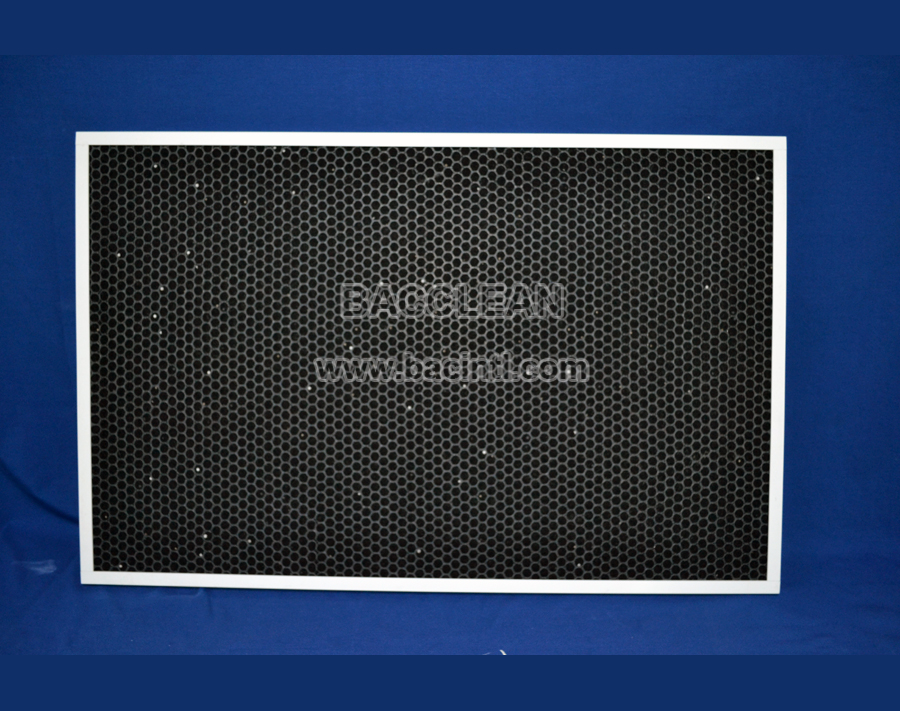

The activated carbon filter material is made of high-efficiency adsorption activated carbon fiber and filter cotton; it has strong adsorption capacity and can effectively filter dust, odor and organic pollutants in the air; it can be made into bag type activated carbon filter and folded activated carbon filter. And plate type activated carbon filter, widely used in various ventilation systems.

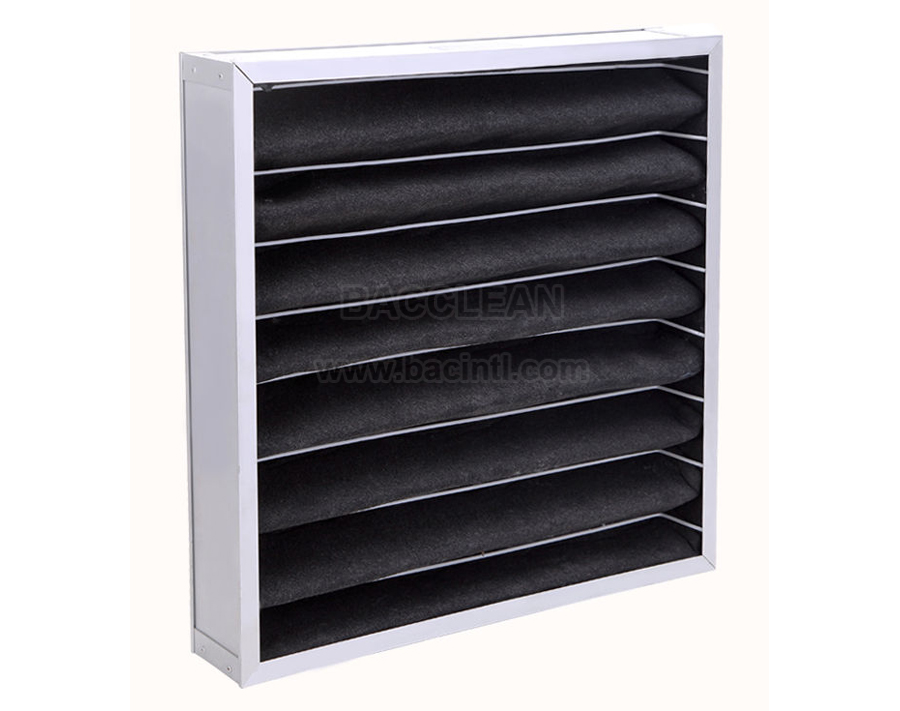

Folded activated carbon filter use

     It is used to purify odorous substances in the air such as benzene, formaldehyde, ammonia, carbon dioxide, and harmful gases; NO2, SO2, etc.; suitable for various air conditioning ventilation systems, which can effectively remove pollution and clean air.

Specifications

Product Features:

1. The filter bag is made of high-efficiency adsorbed activated carbon fiber and filter cotton;

2. Strong surface adsorption capacity, which can effectively control odor and organic pollution in the air;

Solve air filtration in general air conditioning and ventilation places.

Product Usage:

Suitable for all types of air conditioning ventilation systems. The treatment of odor and air pollution in the center of the air conditioning ventilation system is particularly effective, and it can effectively clean the air.

Precautions:

1: Activated carbon bag filter is not cleanable and is a disposable consumable. 2: The activated carbon bag filter is placed in a vertical position, and the filtering effect is good.

Specifications

Filter material used high quality coal activated carbon or coconut shell activated carbon, Meet special environmental needs, Remove odors from the air(The stench), High concentration of acid in the air, alkali, Organic compound gas and Various harmful gases in the air .

According to the actual situation to provide a variety of characteristics of the material. Flexibility is high, Double guard rail support,Strong adsorption, large filtration area, high carbon content, long service life.

Reliable performance, Low maintenance cost, Ease of use.

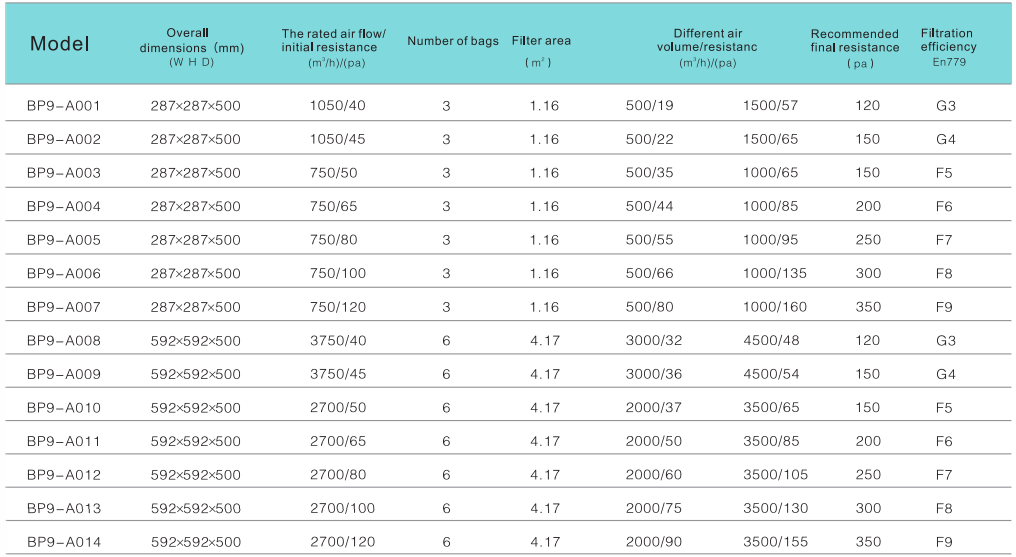

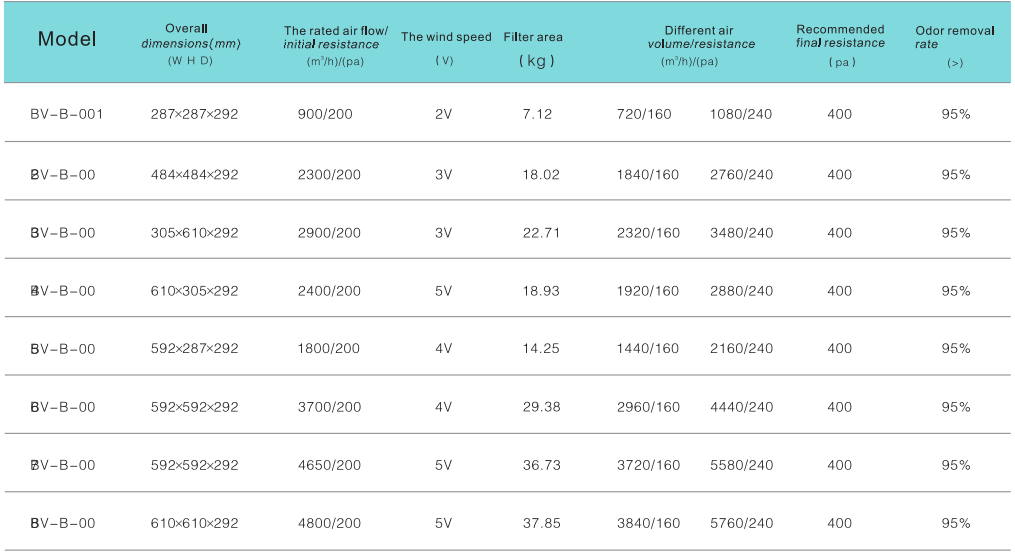

Specifications

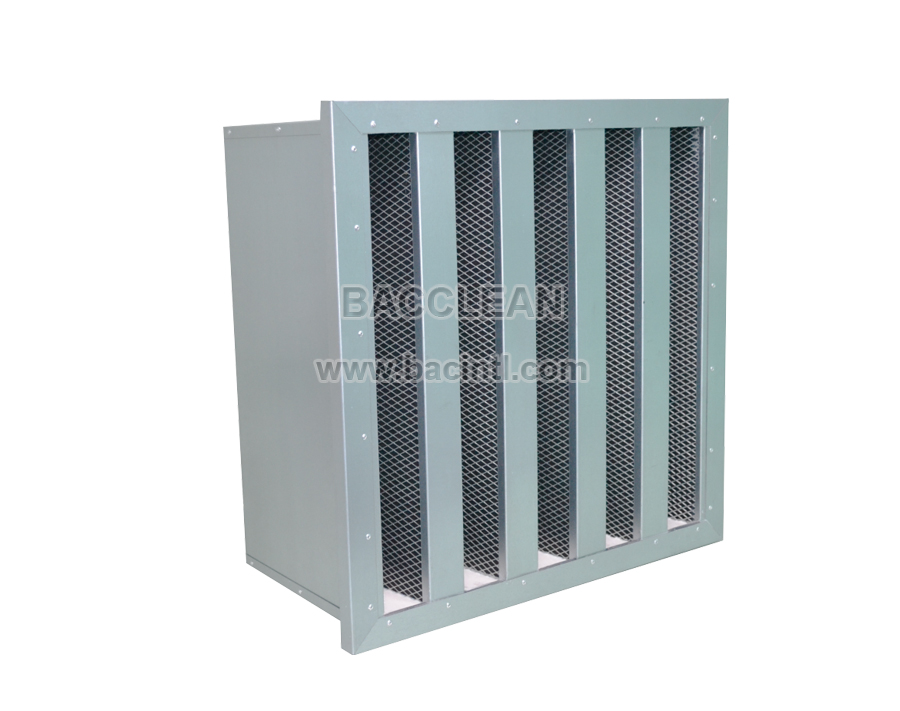

The bag type activated carbon filter is suitable for various air conditioning ventilation systems. It has excellent effects in dealing with odor and air pollution in the central part of the air conditioning ventilation system, which can effectively remove pollution and clean air.

◆Using granular activated carbon for special chemical treatment

◆ Strong adsorption capacity, high removal efficiency and reliable performance

◆ Easy installation and maintenance, strong versatility

◆The frame material can be galvanized steel, stainless steel or aluminum alloy.

application

1. Suitable for industrial ventilation systems to remove odors (odors) and harmful gases from the air

2. A variety of special activated carbon materials can be provided according to actual needs, such as volatile organic compounds, acid, basic gases, formaldehyde, mercury vapor, radioactive gases.

Specifications

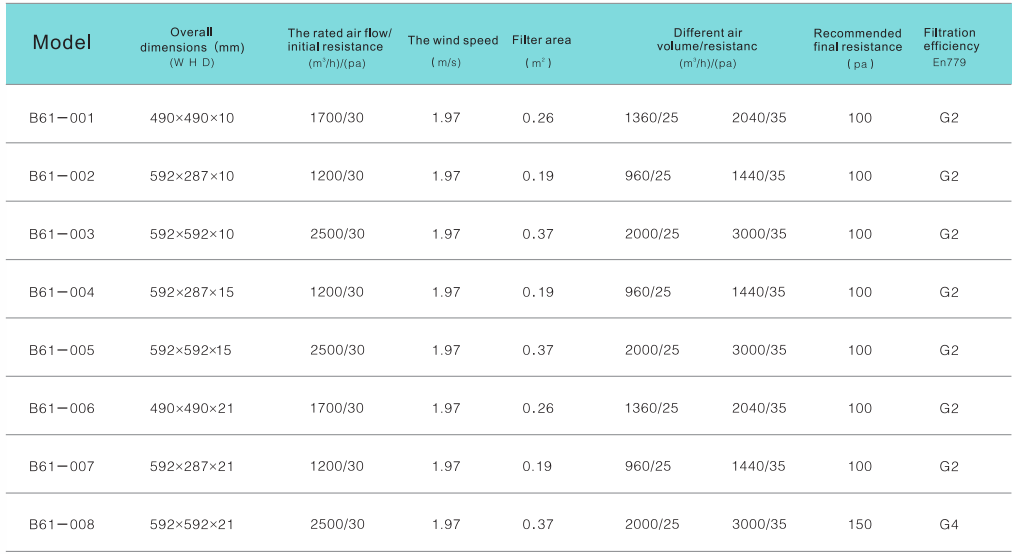

High temperature resistance pre-filter filter:

1. Both sides of the filter material are folded with galvanized wire mesh or stainless steel mesh, with good strength, and the filter material is not easy to be blown;

2 double-sided galvanized square mesh, galvanized diamond mesh, stainless steel square mesh reinforcement, can be used in the environment of large volume of normal use;

3 filters and heat-resistant: 250-300 ℃;

Filter level: G3

Performance characteristics:

Large filtration area and long service life;

High air volume, low initial resistance and noncombustibility.

Specifications

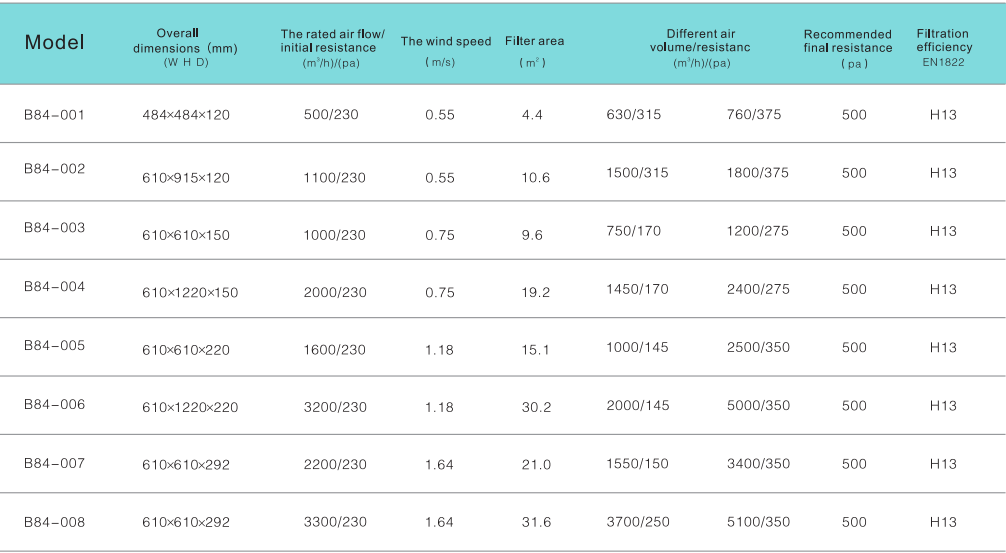

Features

1. Aluminum foil separator to separator filter media; aluminum foil can beat high temp and high moist;
2. Heat resistant glass fiber media;
3. Frame: galvanized steel ( less 200 centigrade ), or stainless steel 201, 304 frame;
4. Low resistance, high efficiency, that can be used in high temp about 250-350 centigrade for a long time;
5. Every HEPA filters are tested one by one according to the EN:1822 standard;

Specifications

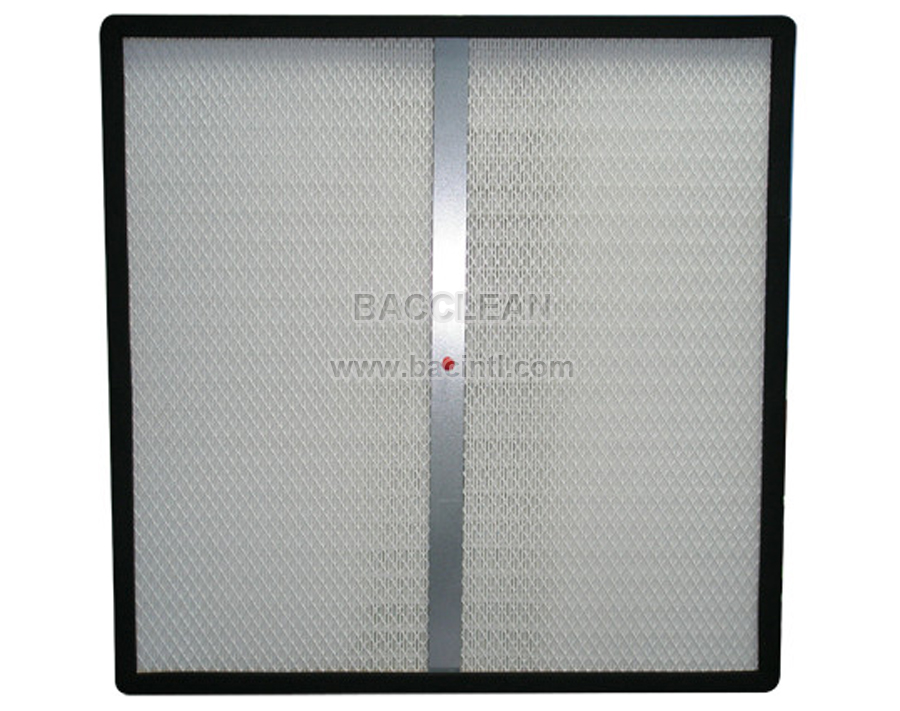

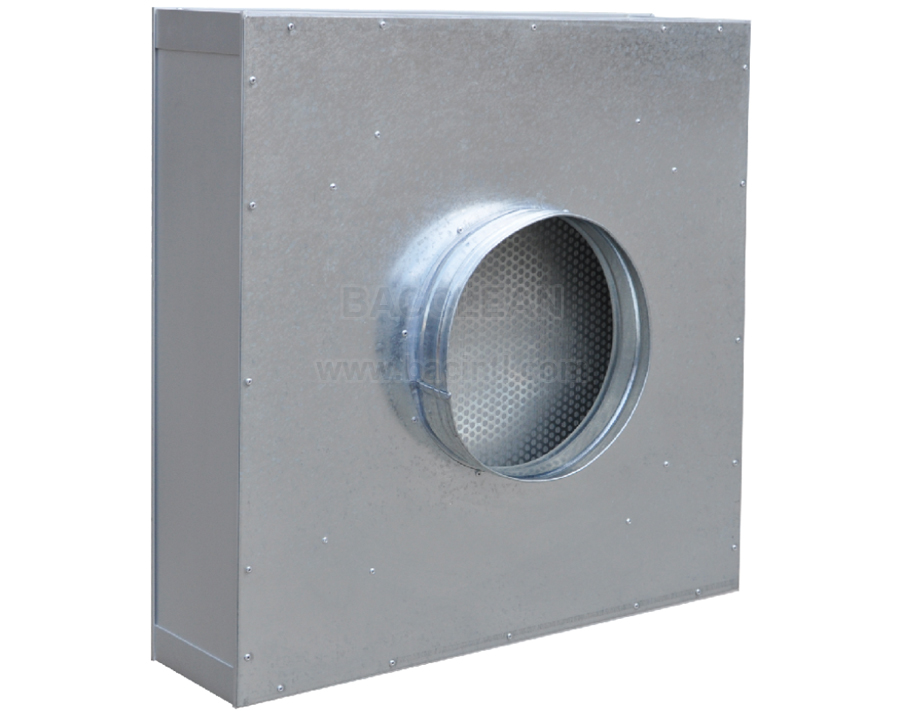

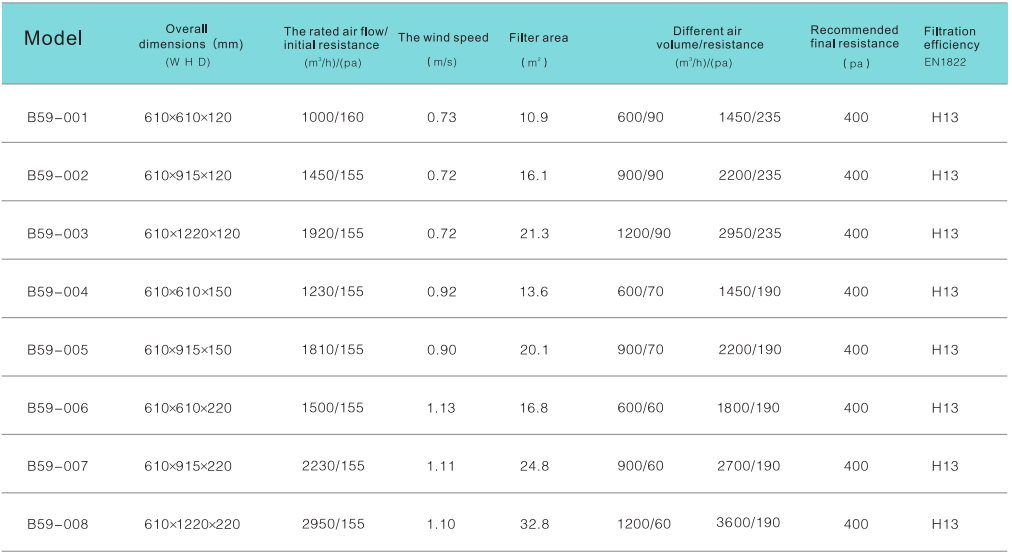

The HEPA Replacement Air Filter ensures it yields only clean filtered air from the filter face, when connected to a duct system or fan via its spigot connection on the rear of the filter.
This is without the concerns of clamping pressures, gasket seals and the quality of the sealing mating face, associated with the traditional Terminal Housing. Once connected, only filtered air can leave the filter, as it has been factory tested and the cassette casing is the integral case of the HEPA filter as well.

Specifications

Non-standard customization

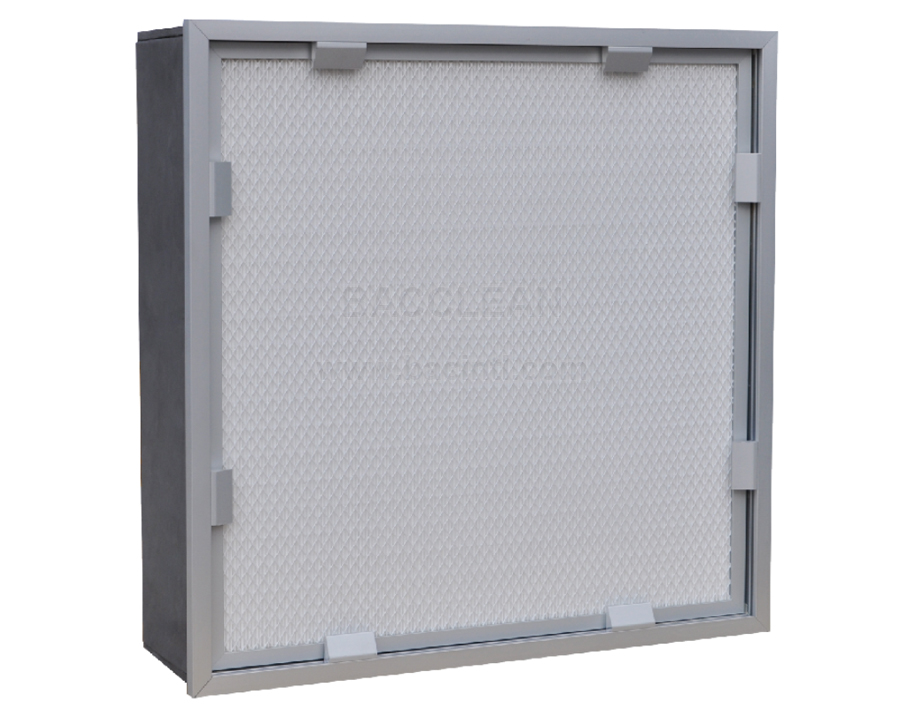

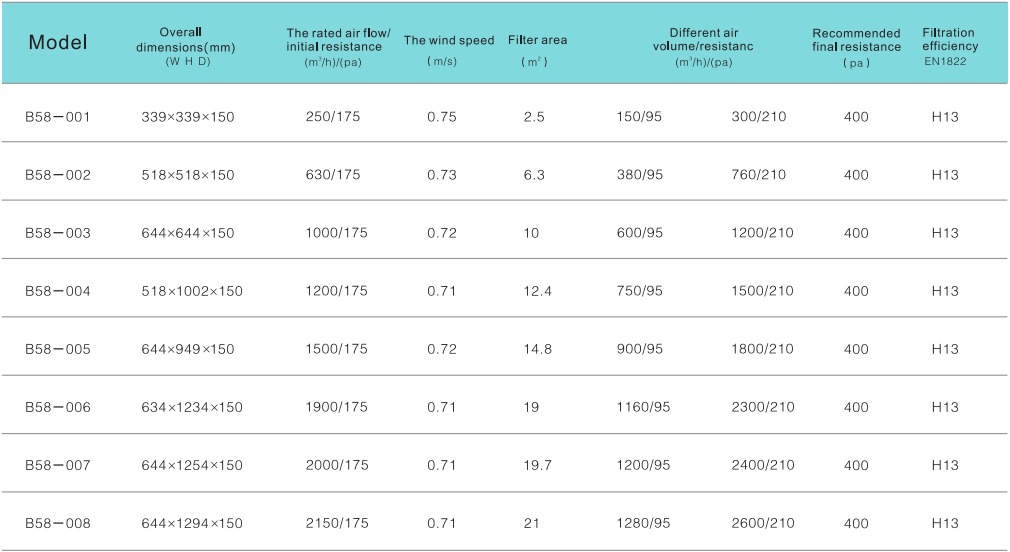

The Replaceable HEPA filter with hood cabinet are designed in closed integration which prevent the air leakage. Meanwhile the heap filter replaceable from cleanroom inside.

This filter light weight and easy maintain

Air duct is galvanized steel and the diameter is 250mm, 300mm and 350mm for your choose

Control valve for air flow adjust (optional).

The media material is super glass fibre for 0.3um particulate.

100 % provide the test report for each mini-pleats HEPA air filter Filtration Efficiency: H13 ,H14,(EN1822).

Specifications

1. It is mainly used for filtration of air suspended particles above 0.3um, as the end filtration of various filtration systems

2, anodized aluminum box material, light weight, easy to transport and installation, suitable for installation in the aluminum alloy keel form of the clean room

3, in the wind to take over, into the wind to take over the diameter of optional Φ 250, Φ 300, Φ 350

4. The high efficiency filter and the static pressure box are separated, and the air inlet of the static pressure box can be equipped with a regulating valve to adjust the air supply uniformity and static pressure effect

5, the filter can be replaced design, do not need to replace with the box, reduce costs, save resources

6, special free tools filter fixed piece, directly from the indoor replacement filter, rapid installation, convenient replacement

7. Replace the special clapless high-efficiency filter (thickness: 69mm) in the matching room with high filtration efficiency and low resistance

8. Four aluminum profile lifting blocks on the cover plate are used for integrated ceiling installation

9. The box is covered with PEF insulation cotton with good insulation performance

10. It is especially suitable for clean rooms which are limited by the height of civil works or must adopt compact design, greatly saving space

11. Each filter is strictly tested

12. Filtration efficiency grade: h13-h14 (EN1822)

Specifications

SPECIFICATION:

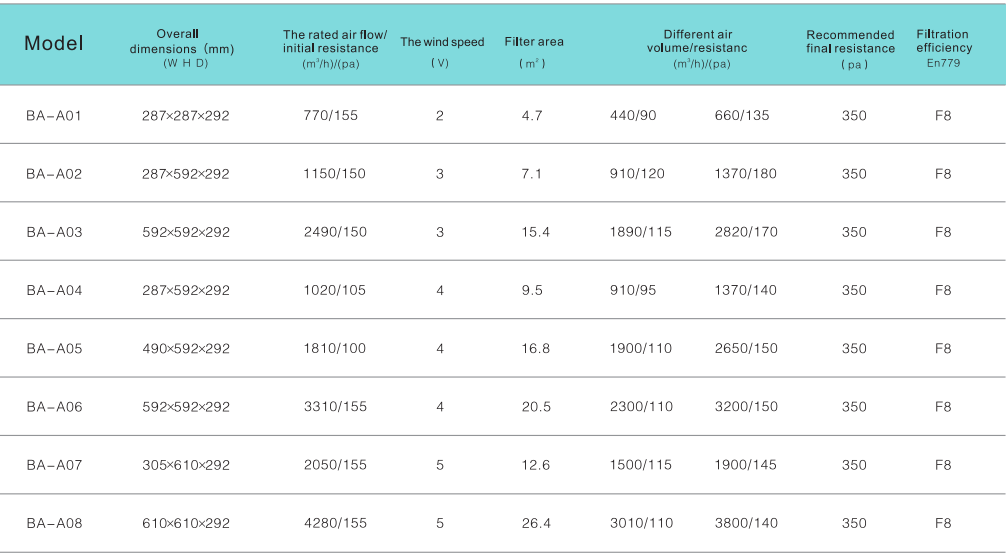

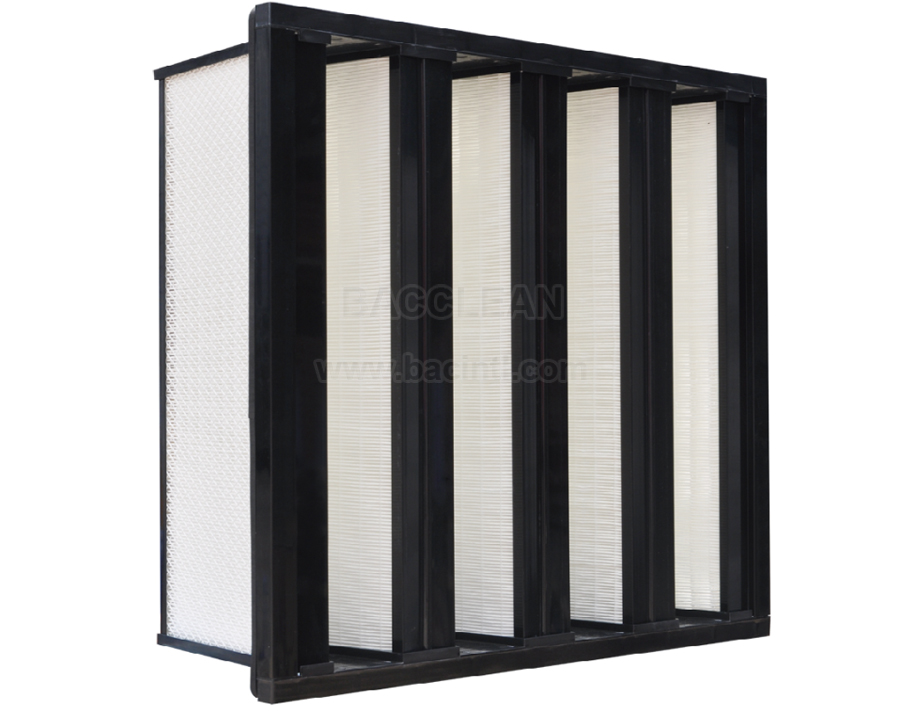

Rigid V-bank air filter in combined type

1) Polypropylene plastic frame can be disposed by incineration

2) Big filtration area, low resistance and long life-span

3) Suitable for ventilation air condition systems

4) Use in high air volume applications up to 4000m3/h (25000 cfm)

5) Filtration efficiency grade: F6, F7, F8, F9(EN779)

Features

1. Low pressure Drop-Maximun economy;
2. Large filter surface of 18㎡
3. Extremely long service life
4. Glass fiber paper- no fibre loss
5. Self- supporting and rigid
6. High bursting pressure, dust migration impossible
7. Direction of air flow and installation can be chosen either way round
8. Fully incinerable without pollutant emission
9. Efficiency(Atmospheric)according to EN779, >96%
10. All products are manufactured in Europe standards

Specifications
