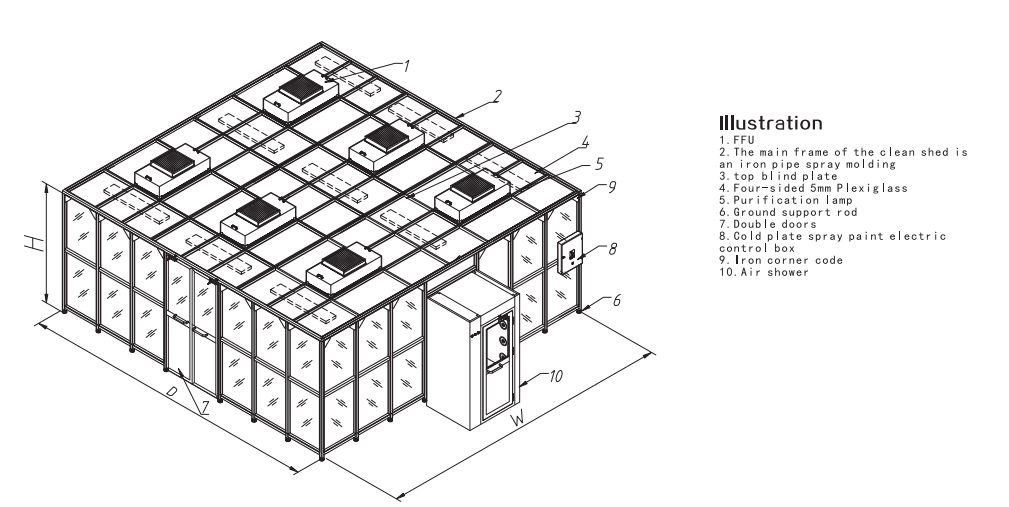

CLEAN BOOTH (also called mobile cleanrooms) is established for the most convenient and fast a simple CLEAN room, CLEAN tents with multiple CLEAN level and dimensional collocation can according to use demand, so its simple design using elastic big easy to install and remove sex and construction short for its main characteristics, CLEAN tent while aiming at the general level of local area of CLEAN room where need high cleanliness do local add to reduce costs. Clean tent is a kind of can offer local high clean environment of air purification equipment.

It can ued alone, also can combination to use. And fabricated 100 level compared to the cleanroom, less investment, quick effect, easy installation, low operating cost. Modular structure and improving cleanliness rating easy, extensible, and repeated use high value. Assembly type structure design, easy installation, shorten delivery cycle. Convenient movement (can pack wanxianglun); Applicable to build a small area of the clean zone. Relative ultra clean bench, internal available and effective space is big; Relative to traditional cleanrooms, low cost, construction of the fast and floor height low is limitless.

Specifications

According to American Federal Standard, a clean room is “a room in which the quantity of particles floating in the air and, when necessary, the temperature, humidity, and pressure, can be controlled, the main objective of the dust in a given room is determined according to the requirements of the products to be handled in the room.

Materials for Clean shed
(1) Frame: Aluminum profile 40*40/40*80mm used in industry, which is firm, beautiful, rustless and no dust attached;
(2) Anti-static curtain: The thickness of grid: 0.5mm; Effectively anti-static, great transparent, clear grid, soft, good toughness, no deformation, not getting burnt-in easily and great performance in temperature compartment and, dust and static elimination;
(3) Covered in the top by purification blind plate, the thickness of which is 1.2mm of plastic spraying cold plate;
(4) Purification lighting system is used inside of the clean booth;
(5) Air supply unit FFU: Adopting low noise centrifugal fan, with such features as long service life, low noise, maintenance free, low vibration and adjustable speed. And in the end of FFU is Mini-pleat HEPA Filters, which is low initial resistance, high dust holding capacity, high efficiency, long service life, easy replacement and etc

Specifications

Non-standard customization

Bacclean cleanrooms are necessary for a variety of industries and uses. When a permanent room is cost prohibitive or when you need the ability to remove the room, a soft wall cleanroom is the perfect solution. There are many features included in these portable clean rooms that make them ideal for a number of different circumstances. They are completely self-contained so they can be set up almost anywhere. Set-up is easy and they are available with locking casters so you can move them around as necessary.

Features of the Soft Wall Cleanroom

Soft wall cleanrooms are filled with plenty of features that make them perfect for many types of uses. They are available in a number of standard sizes so there is sure to be a size that will meet your specific needs. The rooms offer the same important features of traditional clean rooms but are much more flexible. They are free-standing so they can be placed almost anywhere. These self-contained units have their own ventilation and lighting systems built in. They utilize HEPA air filters so they can be used in many various situations.

Soft wall cleanrooms have clear vinyl curtains that are 40 ml thick or they can be fitted with soft vinyl strips that alternate between clear and frosted. The units have a 3M proprietary dual lock system for curtain attachment. The standard ceiling height is 8 feet and has vinyl rock ceiling times. The latch connection system lets you disconnect and reconnect them in a variety of configurations.

Specifications

Non-standard customization

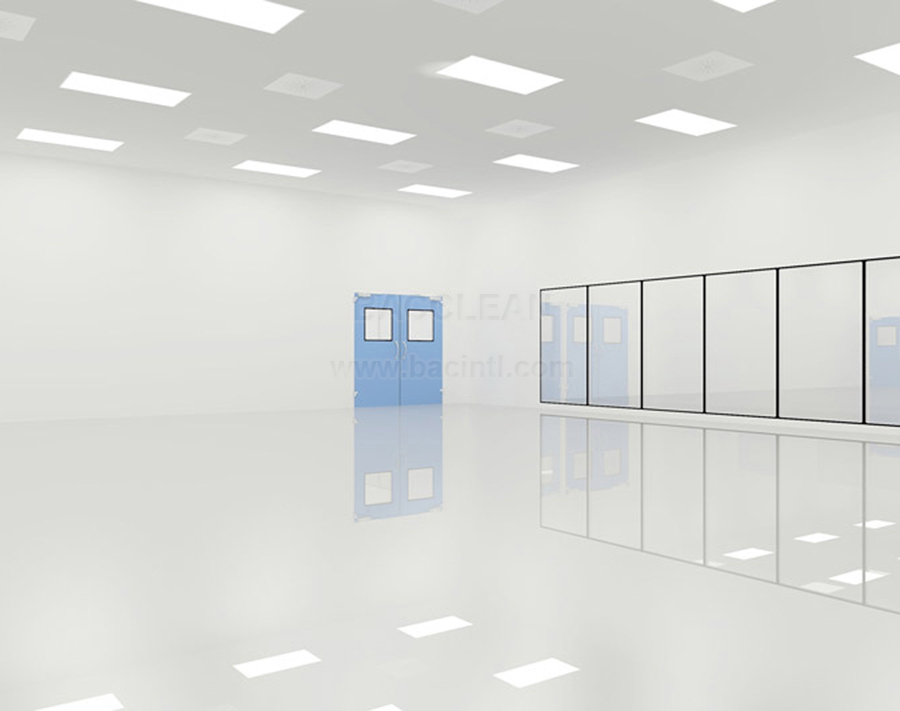

Modular Cleanroom lets you build an economical cleanroom (clean booth) in nearly any office or production space in just a few days. All steel frame supports ceiling grid, flexible vinyl strip shields, fluorescent lighting and fan/filter units to meet cleanliness requirements from ISO 5 – 8(clean booth). Clean booth Shields are made of static-dissipative PVC or Acrylic Sheet to control electro-static discharge.

Features

(1) Assembly structure designed, easy installation and easily moved

(2) Directional wheels can be installed, suitable for small building and high cleanliness area;

(3) Modular design: clean booth can be as small as several square meters and can be as large as hundreds of square meters

(4) It has large useful and effective area; while compared with traditional clean room, it has such features like low investment, high return and stable.

Specifications
