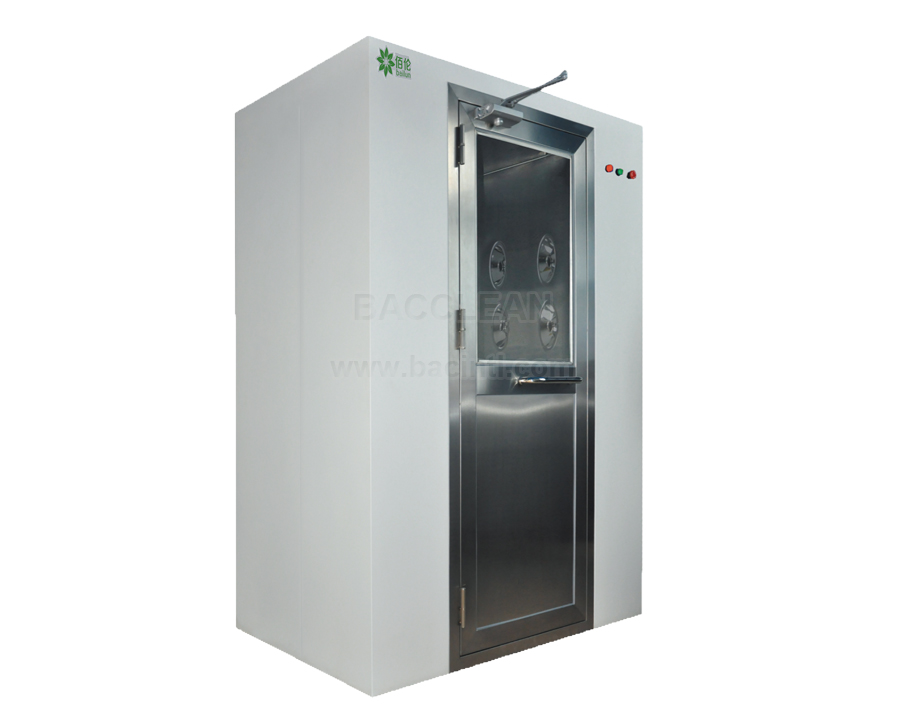

Owing to our rich industrial experience, we have been a noted manufacturer of Air Shower to our huge clientele base. It is a specialized enclosed antechambers that is incorporated as entryways of cleanrooms and other controlled environments for reducing particle contamination. Air Shower utilizes high-pressure, HEPA- or ULPA- filtered air for removing fibrous lint, dust and other contaminants from personnel or object surfaces. The effectiveness, unmatched quality, durability and easy installation results in its highly increasing applaud and demands in the market.

designed to provide complete decontamination solutions for various clean room applications. They are ideally installed at the entrance of a clean room or controlled environment chamber to minimize the entry of dust and particulate matters inside the clean room via the clothes and skin surfaces of the personnel. Our Clean Room Air Shower feature programmable operating modes for flexible application and microprocessor based controller for precise supervision of the operating parameters. They use highly efficient pre-filters and HEPA filters for maintaining highly sterile working environments and an integrated fan/blower assembly to provide high velocity air streams for maximum scrubbing action against dust and particulate matters adherent on the exposed skin, clothes and material surfaces.Air is forced by the blower(s) through HEPA filter(s) which are 99.99% efficient against particles of 0.3 microns.Filtered air is ejected through nozzles at high velocities . These turbulent air streams disperse particulate matter on all surfaces.Dispersed particulate matter migrate with the air stream towards the lower areas in the air shower.Air enters the blower supply plenum through pre-filter(s) installed at the base of the air shower. The air is continuously filtered and recirculated. The air shower is a selfcontained device and does not exchange air with the environment it is placed in.

Specifications

Non-standard customization

The rails on both sides of the door frame are equipped with a sealing brush to prevent insects and dust, and to prevent wind and noise. Fast roll door performance is strong, no dust, efficient, stable, waterproof, easy to clean. The bottom end is equipped with an aggravating cloth, which can be closely combined with various uneven floors to achieve better sealing effect.

Adopt the filtering system of primary level and advanced level, Efficiency is above 99.99%,Equipped with large air volume and low noise fan to ensure the wind speed at the outlet is above 26m/s.

The cargo shower box adopts modular design scheme, It can be assembled and connected into air shower channels of different lengths and shapes according to actual needs,

The internal control system adopts single chip microcomputer control and PLC control curtain door to merge into oneThe LED screen visually displays the entire cleaning state, double-sided automatic induction interlocking, automatic induction blowing, and automatic opening and closing according to the process.

Door automatically roll up. Can do Super wide door. Maximum use of space, with high performance, high reliability, high stability, high precision positioning, etc..

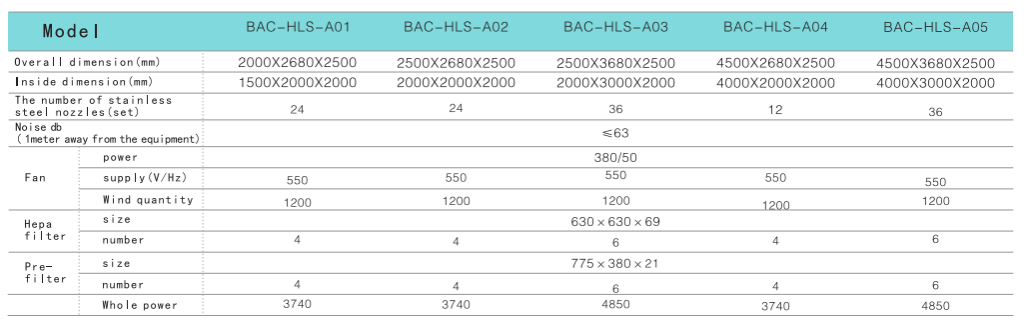

Specifications

The use of intelligent flat door, can automatically sense the door, can control the door, can open the door. A variety of door opening methods are available, smart and convenient. Significant improvement in the efficiency of the passage of goodsAdopt the filtering system of primary level and advanced level, Efficiency is above 99.99%,Equipped with large air volume and low noise fan to ensure the wind speed at the outlet is above 26m/s.

The cargo shower box adopts modular design scheme, It can be assembled and connected into air shower channels of different lengths and shapes according to actual needs, Convenient for transportation and disassembly.

Wide range of applicationsExcellent performance and unique effectsIt is an essential product for many industries such as electronics, Microelectronics, precision instruments, medicine and medicine, SMT, food processing, and dust-free spraying.

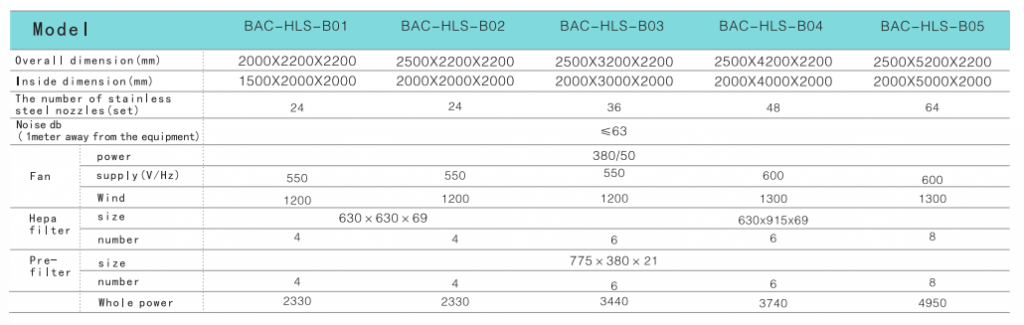

Specifications

Ultrasonic atomization technology, electronic over-frequency oscillation (oscillation frequency is 1.7MHz, exceeding the human hearing range, no harm to human animals), through the high-frequency resonance of the atomizer, the potion is thrown off the water surface to produce natural And elegant water In the mist, the disinfectant is atomized into fine mist particles with a diameter of 1-10 micrometers, and sprayed into the space required for disinfection to achieve the effect of killing bacteria and pathogenic microorganisms in the air.

More thorough than traditional air shower disinfection.

Specifications

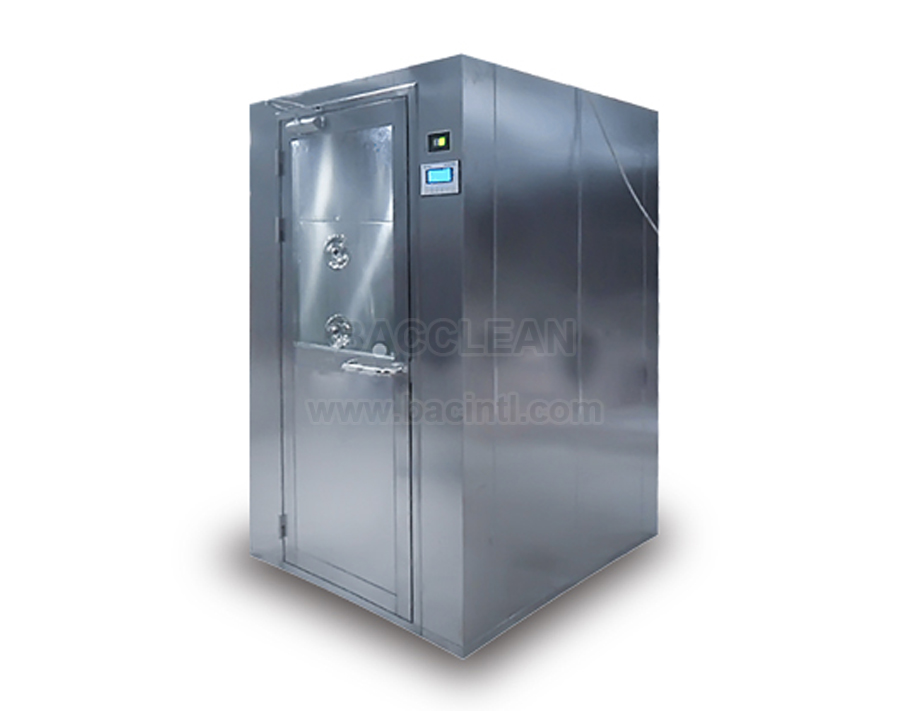

The vertical flow air shower is composed of a fan, a high efficiency filter device, a nozzle and a return air system. The high-speed airflow generated by the fan passes through the high-efficiency filter to form a general high-speed clean airflow from a total of 16 nozzles (single person) at the top, and the wind speed reaches 25m/s or more, while the bottom returns air to form a vertical one-way bottom-flow return air circulation system. . Because of the unidirectional airflow organization, the airflow of the air shower is at the same speed at any point in the same section. The airflow is pressed vertically like a piston, and the dust particles attached to the surface of the person or object can be quickly removed. Take away, the removal effect is remarkable.

Specifications

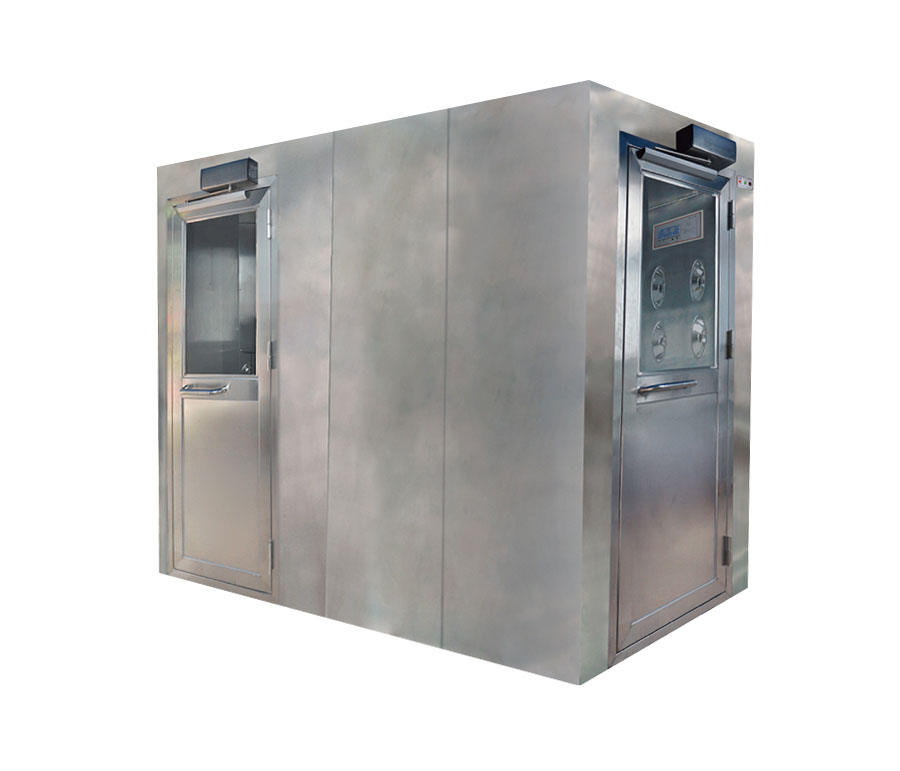

Non-standard custom, used in a variety of places with limited conditions. Side opening, three opening doors, embedded and so on.

An air shower is nothing more than a device meant to limit the contamination brought into a controlled area such as a cleanroom. It works by moving air over the worker at a specific high velocity for a specified period of time. In a properly designed air shower, particles are driven off and away from the body and deposited on the upstream side of the HEPA or ULPA filters.

Cleanrooms are graded based on the level of particles present in the air. These grades are determined by ISO and U.S. federal standards, and changes in the level of contaminants can result in a different grade being assigned. Maintaining contaminant levels is critical, which is why you need a modular cleanroom shower that is reliable and effective.

Our air shower for clean room are available in a variety of sizes and shapes to provide a cleaning system that meets your specific application.

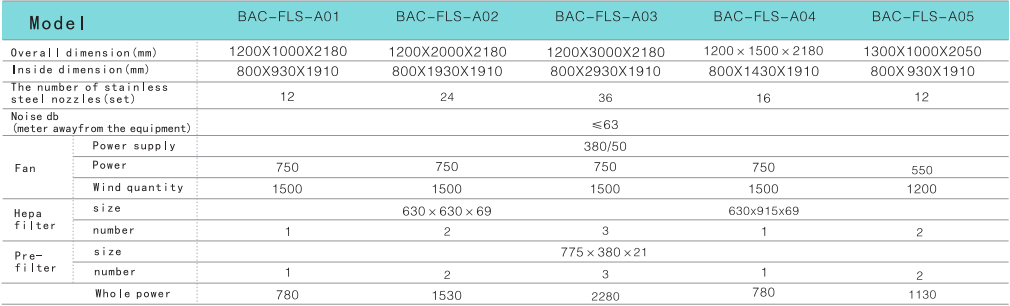

Specifications

Non-standard customization

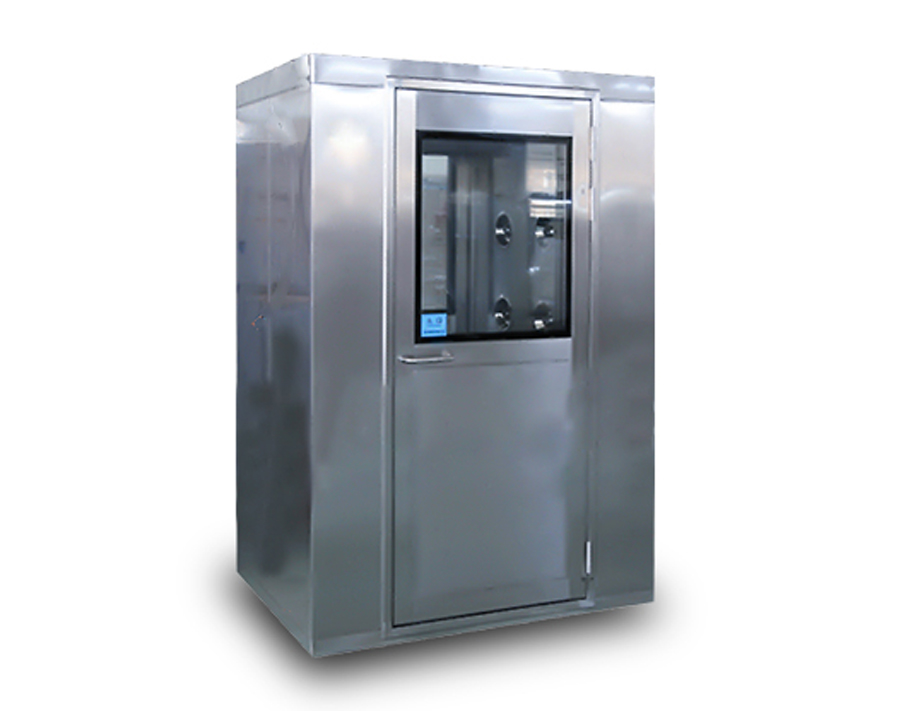

The main difference between the stainless steel air shower and the ordinary air shower is the material. Currently used in Bacclean stainless steel, there are 201 stainless steel and 304 stainless steel: A: 201 stainless steel, with acid resistance, alkali resistance, high density, no bubbles, No pinholes, etc., is the production of a variety of case, strap bottom cover high-quality materials, etc. B, 304 stainless steel air shower is a versatile stainless steel material, anti-rust performance is stronger than the 200 series of stainless steel material high temperature resistance. The aspect is also relatively good, and can be as high as 1000-1200 degrees 0.304 stainless steel with excellent stainless corrosion resistance and good resistance to intergranular corrosion. The stainless steel air shower is made of stainless steel. The different types of plates and the thickness of the plates are one of the factors directly contributing to the price of the air shower.

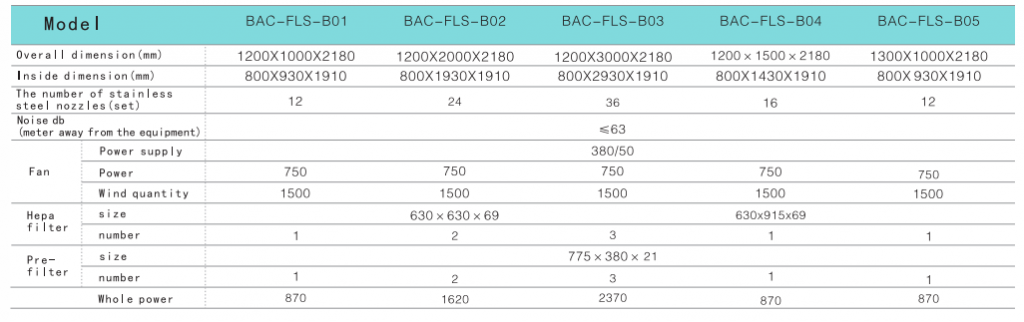

Specifications

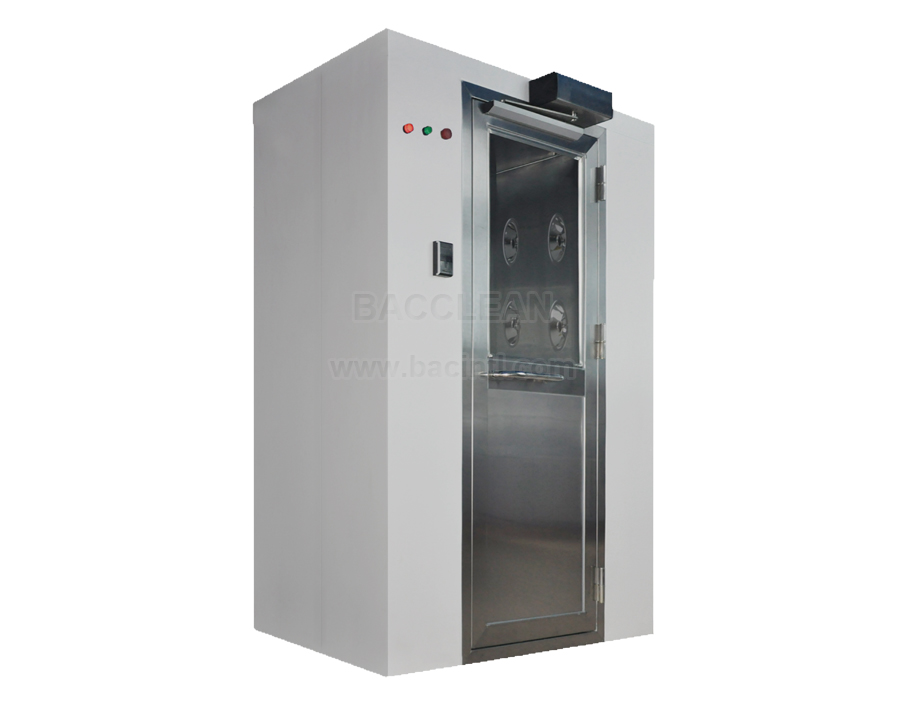

It has automatic doors, Stretch your hand to a distance of 150 mm from the sensor. The sensor lights up the green light. The door automatically opens, closes automatically, and opens automatically after washing. Using advanced and primary, these two levels of filtering systems, the efficiency is as high as 99.99 %. Equipped with large wind volume and low noise wind turbine. Ensure wind speed above the air outlet is 26 m/s. It is automated control, Internal control system of air shower room is controlled by single chip microcomputer, Double side automatic induction interlock, photoelectric induction, infrared induction automatic washing. Excellent performance and unique effects, It is an essential product for many industries such as electronics, Microelectronics, precision instruments, medicine and medicine, SMT, food processing, and dust-free spraying.

Specifications

It uses imported electronic components, so it has high performance and uses good sealing materials to ensure high internal sealing properties. Adopt the filtering system of primary level and advanced level,Efficiency is above 99.99%,Equipped with large air volume and low noise fan to ensure the wind speed at the outlet is above 26m/s.

The air shower box adopts modular design scheme, It can be assembled and connected into air shower channels of different lengths and shapes according to actual needs, Convenient for transportation and disassembly. Internal control system of air shower room is controlled by single chip microcomputer, Double side automatic induction interlock, photoelectric induction, infrared induction automatic washing.

Excellent performance and unique effects, It is an essential product for many industries such as electronics, Microelectronics, precision instruments, medicine and medicine, SMT, food processing, and dust-free spraying.

Specifications
