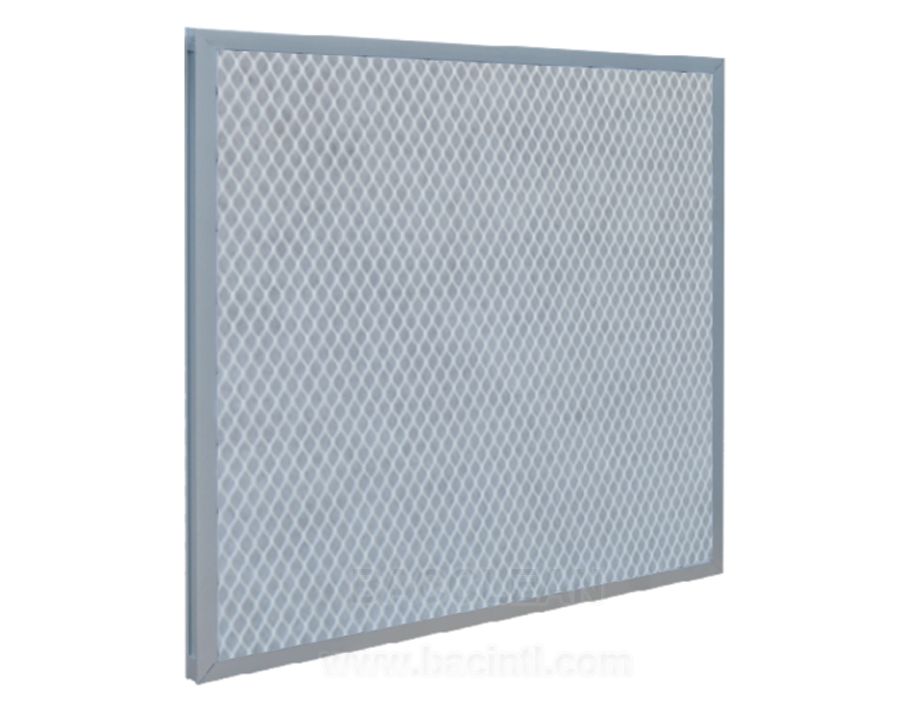

Metal Net Filter is not only used in industry, but also the most economical and convenient solution in the air ventilation or air conditioning intake equipment. The all-metal filter is made of multi-layer expanded aluminum foil mesh or stainless steel textile mesh as the special material for the filter mesh, which is rolled and pressed into a wavy shape and arranged at the right Angle to cross and superposition each other. The flow direction is changed many times when the air passes through the mesh. And with different density, aperture from coarse to fine arrangement, so that the intermediate can produce electrostatic high efficiency air filter, to achieve low resistance to the flow, increase its dust collection capacity and efficiency. Both aluminum and stainless steel filters have the characteristics of safety, firmness, high temperature resistance, easy cleaning and maintenance, and long-term use can reduce the cost of using the filter. Application scope includes: semiconductor industry, pharmaceutical industry (FGMP, GMP), circuit board factory, heavy industry, chemical industry, furniture industry, cement industry, general merchandise industry, steel industry, food industry, precision industry, electronics industry, hospital, research unit, experimental unit and so on!

Features

1. The filter material is composed of multi-layer corrugated aluminum mesh or stainless steel mesh, with multi-layer structure to increase the filtration area

2. Low resistance, repeated cleaning, long service life, high economy.

3. There are three kinds of frame: stainless steel, galvanized steel and aluminum alloy

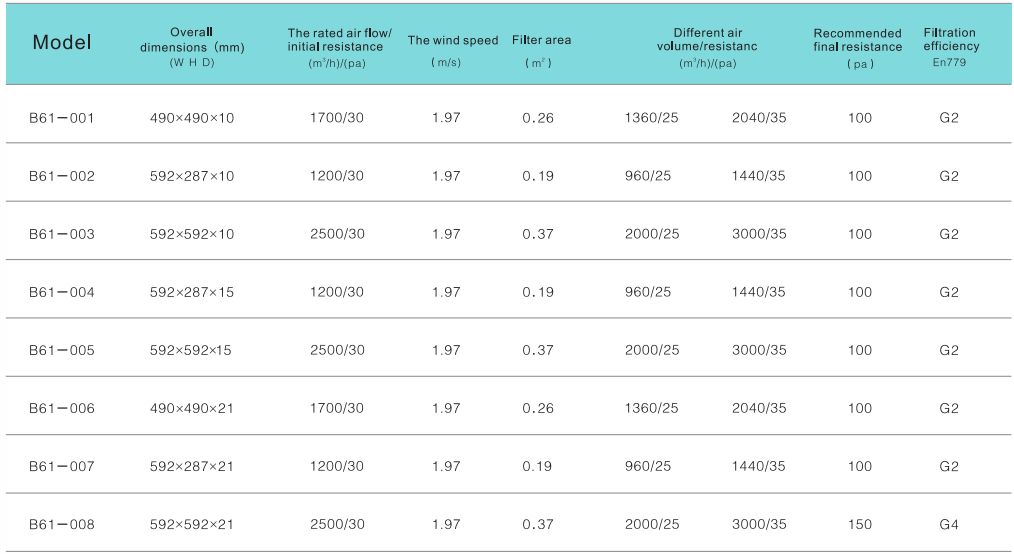

Specifications

USES:

1. Coarse dust filtration, generally used for fresh air units, tuyere and other occasions in contact with the outside air,

2. Indoor air processor and other equipment requiring large air volume filtration, and suitable for ventilation and filtration in places with special acid resistance or high temperature; Can be used for home air conditioning, central air conditioning system of primary filtration, clean room return primary filtration.

Features

1. Good washable

2. Large ventilation volume and low resistance

3. High temperature resistance and moisture-proof

4. Acid and alkali resistance

5. Long service life

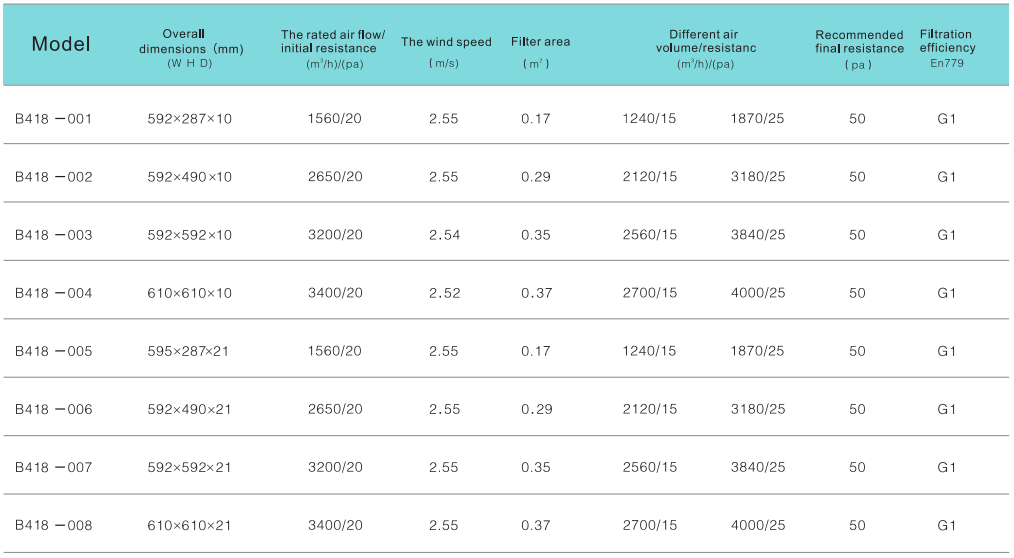

Specifications

Plate type dust filter for high volume, heat resistance or less 300 ℃ or 170 ℃ or less and framework for aluminum alloy, stainless steel, galvanized sheet.

Features

1.Can be cleaned and used

2.High dust capacity

3.100% all products ex-factory inspection

4.High wind capacity, low resistance

5.Simple structure, easy to replace the filter material

6.Product strength is high

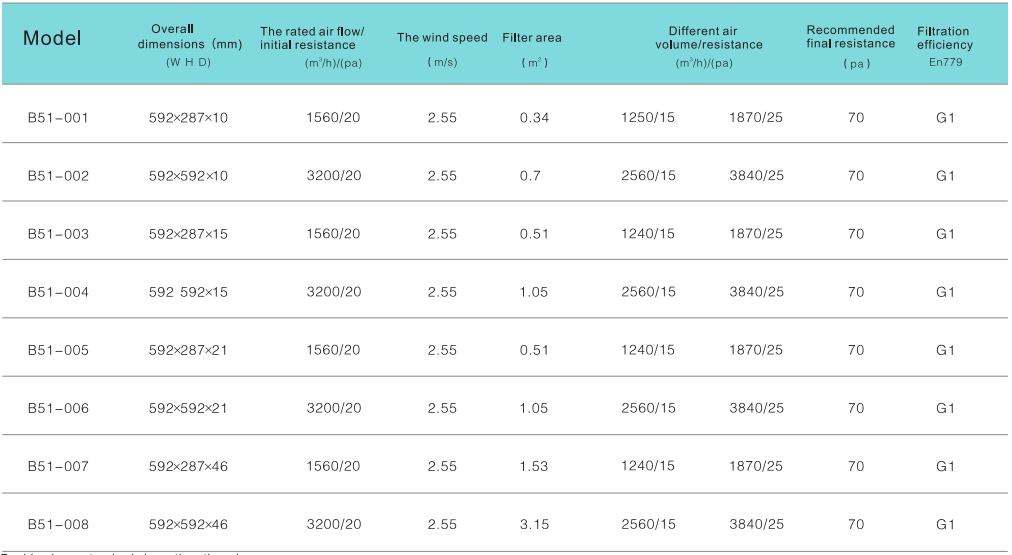

Specifications
